10 Ton Self-Loading Crane
10 Ton Self-Loading Crane
A practical fit for operators who need proven lift performance, simpler model selection, and direct manufacturer guidance for truck-mounted industrial loading.
Quick Fit
Choose the 10 Ton when your operation needs everyday industrial lifting performance, faster model fit, and a loader sized for versatile truck applications.
Capacity
16,000 lbs
at 8'
Overview
A Buying Page, Not Just a Spec Sheet.

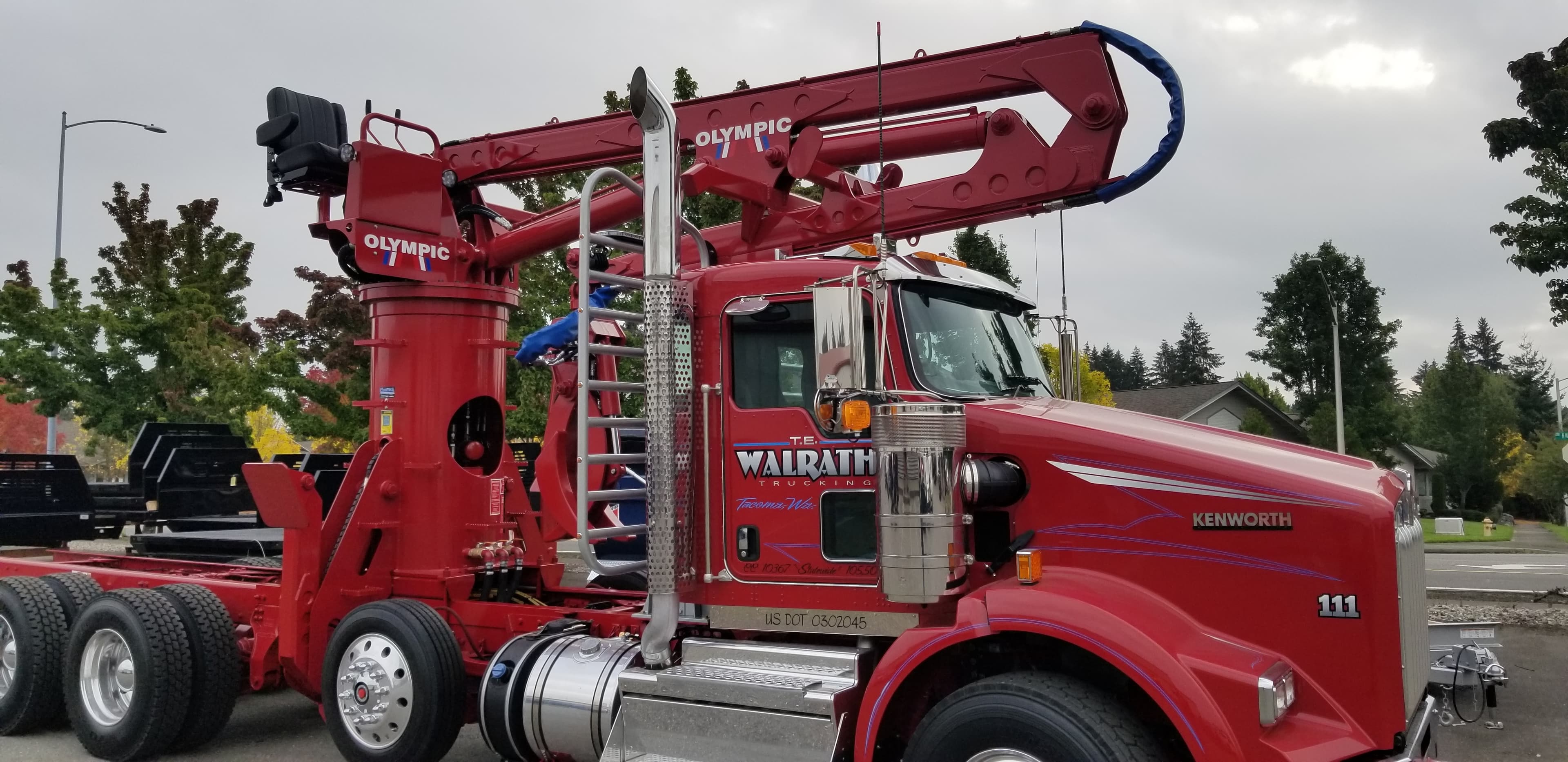

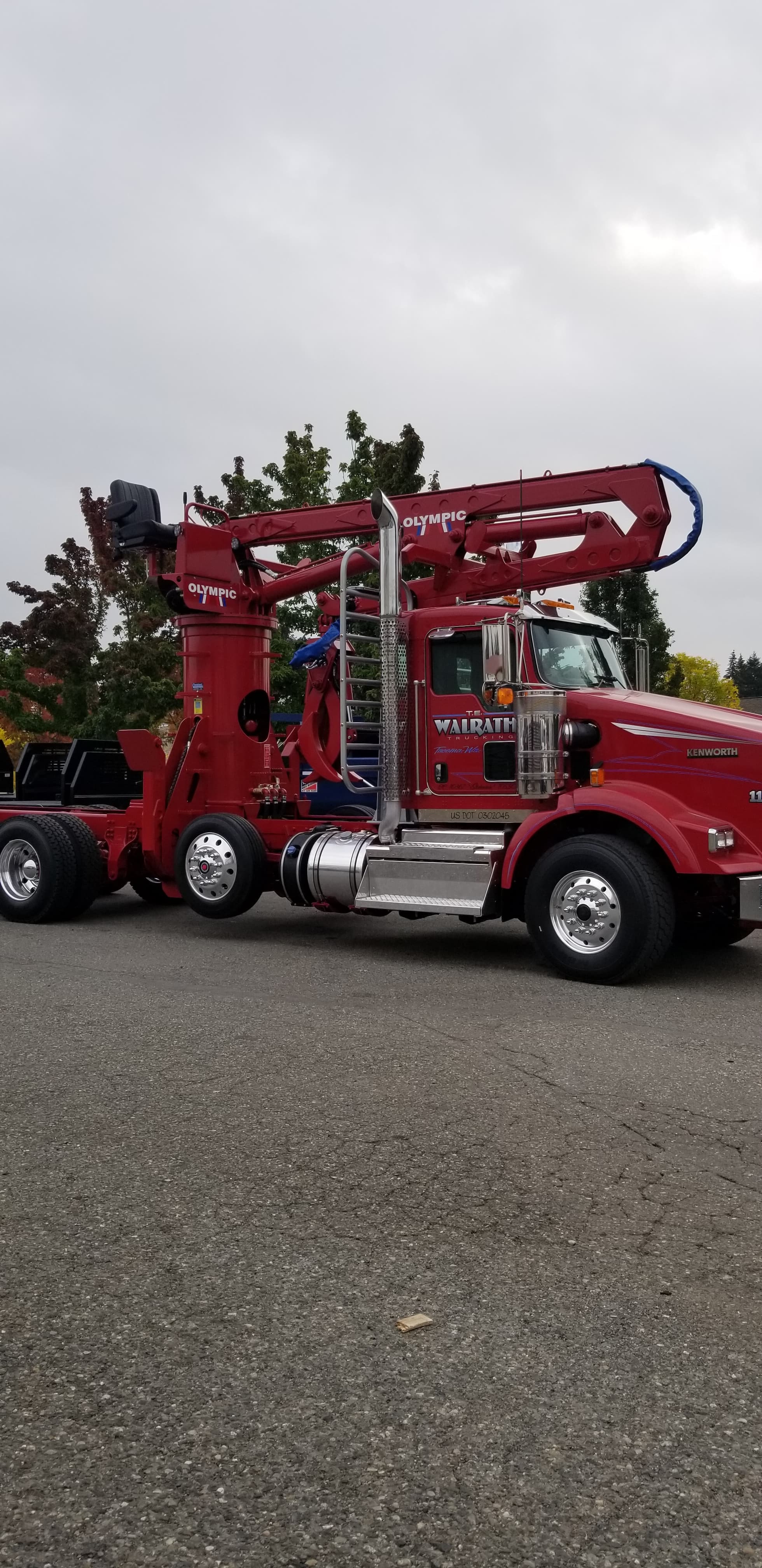

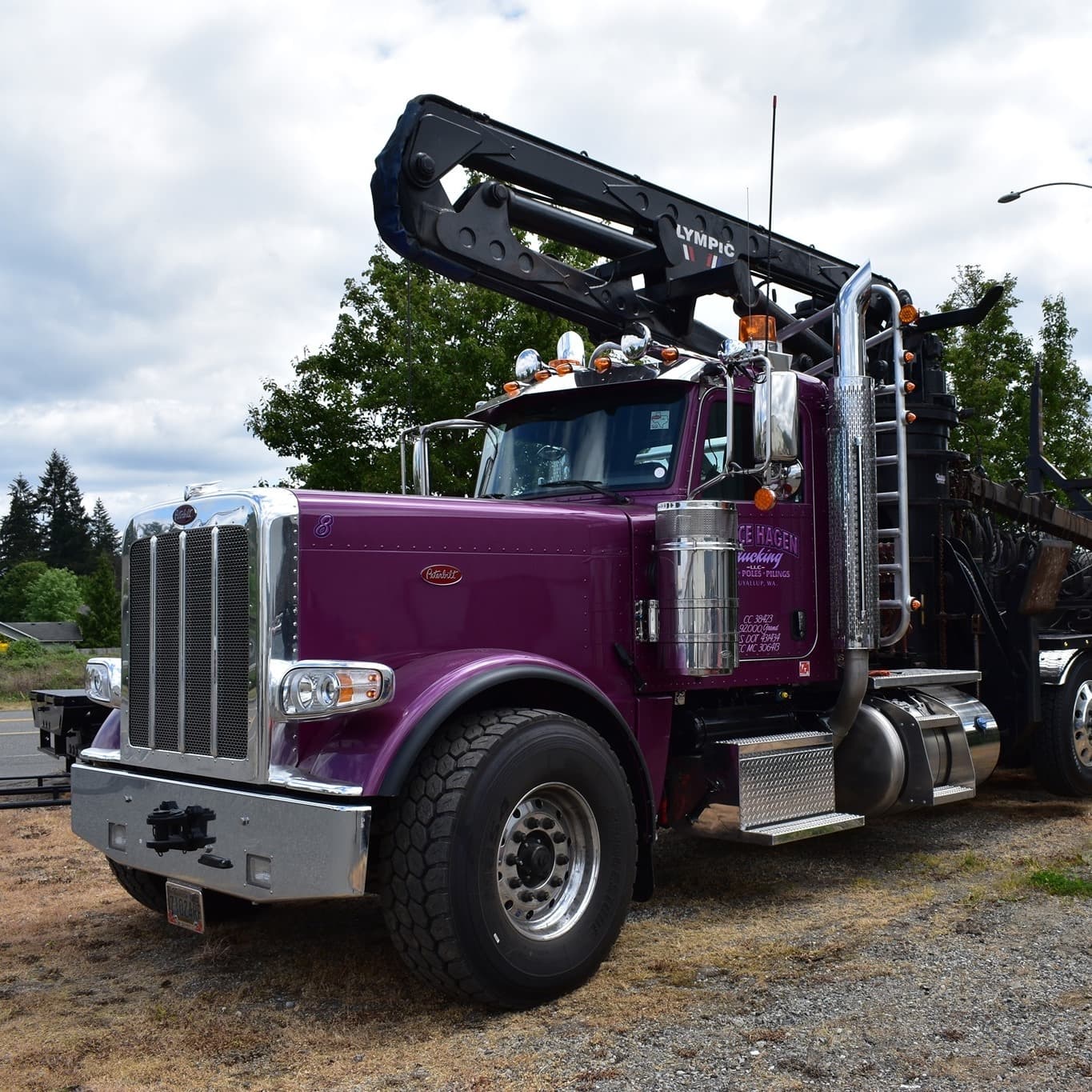

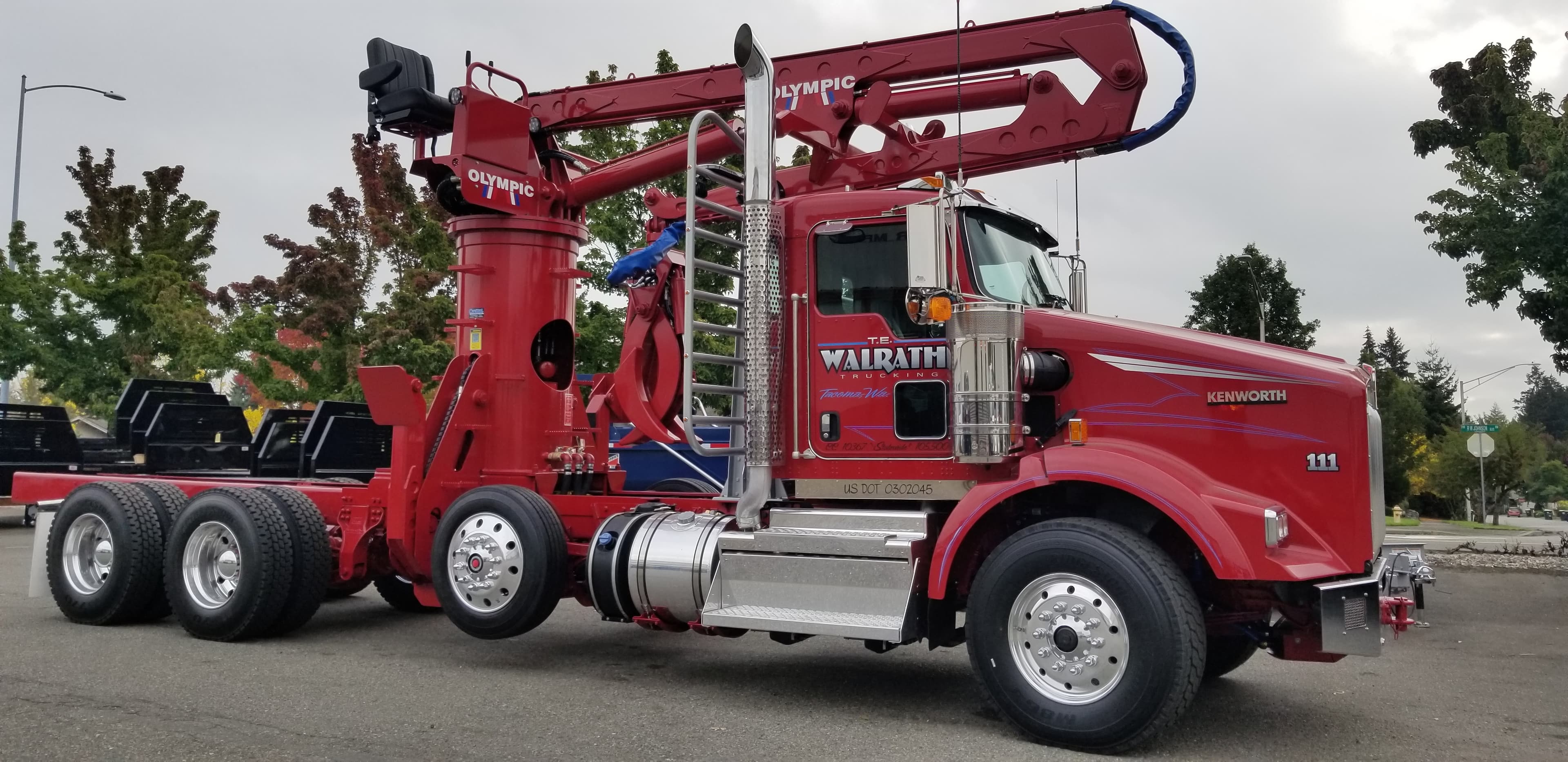

The Olympic 10 Ton self-loading crane delivers 16,000 lbs at 8 feet — all from a compact, hydraulically-powered knuckleboom system built to last decades in the field. Trusted from Pacific Northwest log yards to global vessel decks.
Best when you need proven Olympic performance without stepping up to the heavier 14 Ton package
Strong fit for buyers who want a loader sized around daily truck work instead of oversized capacity
Keeps the buying decision straightforward for mixed-use operations that still need industrial build quality
Why Buyers Choose This Model
- Hydraulically powered with 80-gallon system
- 6 RPM full rotation swing
- 44" interlocking log grapple
- Weld-on Rotek swing bearing
- Extensible boom from 21'6" to 25'1"
- Compatible with log, rock, and recycling configurations
Capacity
Match Lift Numbers to the Real Duty Cycle.
Start with the lift chart, but use the rest of the page to decide whether the platform, use case, and duty level fit this model or the 14 Ton.
| Radius | 10 Ton Capacity |
|---|---|
| 8' | 16,000 lbs |
| 15' | 9,000 lbs |
| 20' | 6,000 lbs |
| 25' | 4,000 lbs |
Specs
Straight Answers for Spec-Driven Buyers.
- Knuckleboom Length
- 25'
- Boom Construction
- 6"×8"×½" tube, strapped; ½" X-10 steel side plates
- Jib
- 6"×8"×½"
- Swing
- 6 RPM; Auburn gearbox, 36:1 ratio
- Swing Bearing
- 33" diameter barrel, weld-on Rotek bearing
- Hydraulic System
- 80-gallon; 3-stage commercial pump; commercial valves; 2 return + 3 suction filters; 4 wire hoses; sealed cylinders
- Installed Weight
- 9,000 lbs (with grapple)
- Grapple
- 44" interlocking log grapple (closes to 4½"); T-1 steel tongs; GV12R8 indexator (continuous rotation)
- Controls
- Foot pedal swing; wobble sticks (standard); 4-lever controls (optional); outrigger controls on console
- Outriggers
- 14' spread (standard); lockout valves; 6"×24" cylinder
- Boom Hardware
- 3" alloy main boom pin and main-to-jib; 2½" alloy pins on other major joints; main & jib boom heel racks; X-10 plate + mild steel tube combination
- Operator Seat
- Fold-down cushion
Applications
Where This Model Fits Best.
These are the buyer conversations this page should support before someone ever reaches the quote form.
Log truck loading where grapple control and daily durability matter
Recycling and scrap operations that need reliable truck-mounted lifting
General industrial or municipal work where 16,000 lbs at 8 feet is the right fit
Model Comparison
Compare Before You Request Pricing.
Serious buyers want a fast way to confirm which loader belongs in the quote conversation. This section keeps that decision explicit.
| Compare | 10 Ton | 14 Ton | Buying Note |
|---|---|---|---|
| Capacity at 8' | 16,000 lbs | 22,000 lbs | Use this first if lift-at-radius is the main buying constraint. |
| Boom length | 21'6" - 25'1" | 23'3" - 25'1" | Both are comparable in reach; the main differentiator is lift and duty level. |
| Installed weight | 9,000 lbs | 9,800 lbs | Account for payload, chassis, and installation constraints early in the quote conversation. |
| Best fit | Versatile truck applications | Heavier-duty industrial work | Choose based on real duty cycle, not just wanting the bigger machine. |
Buyer FAQ
Objection-Handling Before the First Call.
What type of buyer is the 10 Ton best for?
The 10 Ton is the right fit for operators who need a dependable self-loading crane for log, recycling, and general industrial work without stepping up to the heavier 14 Ton platform.
Can the 10 Ton support mixed applications?
Yes. It's a flexible choice for operations that handle logs, material, or industrial loading tasks on the same core machine.
What is the 10 Ton's lift capacity at maximum radius?
At the full 25-foot working radius the 10 Ton lifts 4,000 lbs. The full capacity chart steps from 16,000 lbs at 8' to 9,000 lbs at 15' to 6,000 lbs at 20' before reaching that 4,000 lb figure at 25', so you can match the loader to the lift number your duty cycle actually needs.
Can the 10 Ton handle pulpwood loads and small log work?
Yes. Operators across the Pacific Northwest run the 10 Ton in pulpwood and small log applications where the 44-inch interlocking log grapple, GV12R8 continuous rotation, and compact truck-mounted footprint matter more than top-end lift figures.
How is an Olympic self-loading crane different from a tracked knuckleboom loader?
Olympic loaders are truck-mounted self-loading cranes — the operator station and boom are mounted on a pedestal directly on the working truck, so the loader travels with the load. Tracked knuckleboom loaders are separate machines that stay at the landing or yard. Buyers typically choose self-loading cranes when the same crew is hauling and loading the same load.
Request Quote
Ready to Price the 10 Ton?
Talk to the manufacturer about your truck, vessel, or site conditions and start with the loader that actually fits the application.
Talk directly with the manufacturer about fit, configuration, and lead questions.
